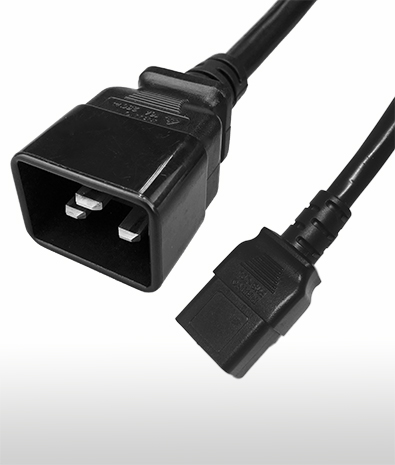

Holland IEC 60320 C20 Grounded Plug To C19 Connector, 3-Pin AC Power Cord_Products | AC power cord, plugs, sockets and wire harness manufacturer Phino Electric

Products

Voltage

250V

AMP

10A

Color

Black or customized products can be offered upon requests

Material

PVC

Min. Order Q’ty

1000PCS

Production capacity

500000PCS/Month

Plug P/No

PHP-336

Plug AMP/Voltage

16A 250V

Connector p/No

PHS-303

Connector AMP/Voltage

16A 250V

Certificate

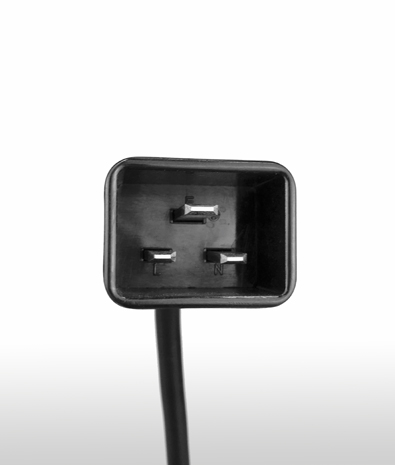

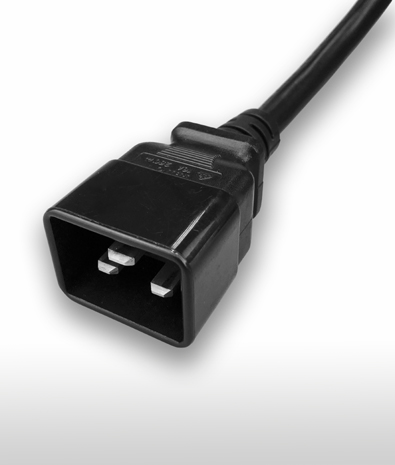

The IEC 60320 C20 (Male) is a 3 pins grounded plug rated up to 250V and 16A. The C20 mates with a C19 outlet and is typically found on Data Center/IT specific PDUs (Power Distribution Unit). The most common configuration for a C20 is in a jumper cable scenario, providing power from a PDU to a blade server chassis, high powered server, large network router, or similar device.

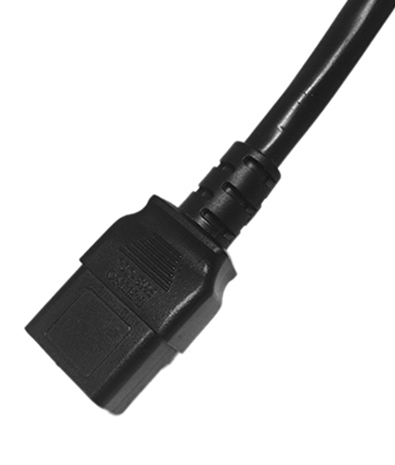

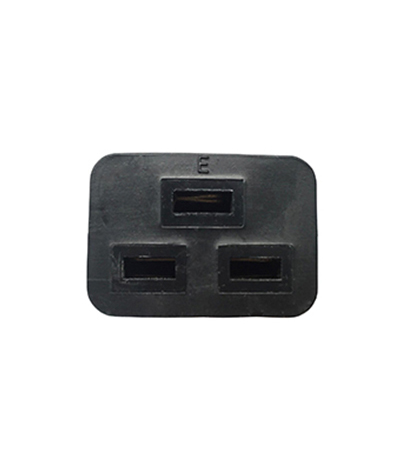

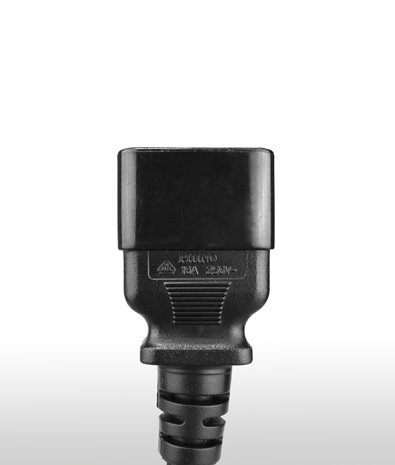

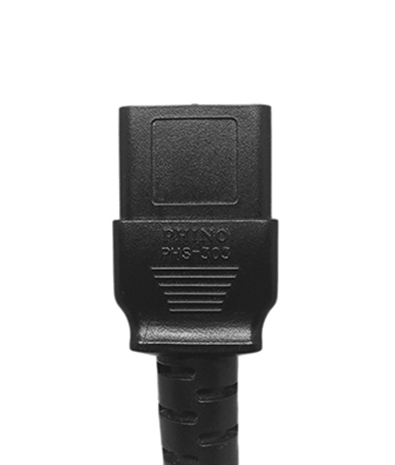

The IEC 60320 C19 (Female) is a 3 pins grounded connector rated up to 250V and 16A. The C19 mates with a C20 inlet and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C19 is typically used in high powered blade server chassis, large network routers, and other IT equipment that draws more power than a standard C13 can accommodate.
