Canada PVC Insulated Sheathed Double Core Wire & Cable SJT/SJT0/SJTW
Color
Black or customized products can be offered upon requestsMaterial
PVCMin. Order Q’ty
1000MProduction capacity
100000M/MonthCertificate
Specifications
| Type | Conductor | Insulation | Jacket | |||||
| NO | AWG | Area | Construction | Thickness | OD | Thickness | OD | |
| mm2 | (NO./mm) | mm | mm | mm | mm | |||
| SJT SJTO SJTOW SJTOOW | 2 | 18 | 0.81 | 41/0.160 | 0.76 | 2.75 | 0.76 | 7.50 |
| 16 | 1.31 | 65/0.160 | 0.76 | 3.10 | 0.76 | 8.10 | ||
| 14 | 2.08 | 41/0.254 | 0.76 | 3.50 | 0.76 | 8.70 | ||
| 3 | 18 | 0.81 | 41/0.160 | 0.76 | 2.75 | 0.76 | 7.80 | |
| 16 | 1.31 | 65/0.160 | 0.76 | 3.10 | 0.76 | 8.50 | ||
| 14 | 2.08 | 41/0.254 | 0.76 | 3.50 | 0.76 | 9.30 | ||
| 12 | 3.29 | 65/0.254 | 0.76 | 4.00 | 1.14 | 11.00 | ||
| 10 | 5.22 | 65/0.320 | 1.14 | 5.40 | 1.52 | 14.80 | ||
| 4 | 18 | 0.81 | 41/0.160 | 0.76 | 2.75 | 0.76 | 8.50 | |

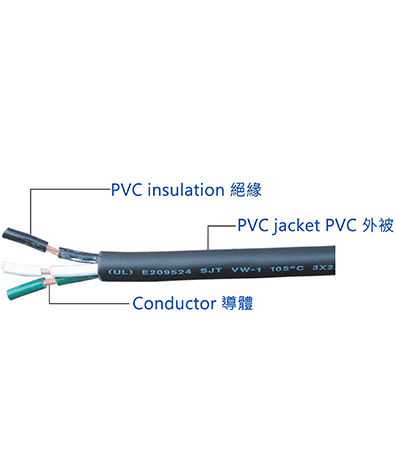

| Product Description ￭ Bare stranded copper conductor. ￭ PVC insulation. ￭ PVC Jacket. ￭ Rated temperature: 60℃ or 105℃ ￭ Rated Voltage: 300V ￭ Passed UL VW-1&CSA FT1vertical flame test. ￭ Standard: CSA C22.2 Applications ￭ used in light-duty portable cordage of tools，washing-machine, medical equipments and office machines. | ||||||||
