Korea H03 Series Wire & Cable H03VV-F/H03VVH2-F
Color
Black or customized products can be offered upon requestsMaterial
PVCMin. Order Q’ty
1000MProduction capacity
100000M/MonthCertificate
Specifications
| Type | Conductor | Insulation | Jacket | |||
| Area | Construction | Thickness | OD | Thickness | OD | |
| mm2 | (NO./mm) | mm | mm | mm | mm | |
| H03VVH2-F | 2*0.50 | 28/0.15 | 0.50 | 1.95 | 0.60 | 3.2*5.4 |
| 2*0.75 | 42/0.15 | 0.50 | 2.15 | 0.60 | 3.5*5.5 | |
| H03VV-F | 2*0.50 | 28/0.15 | 0.50 | 1.95 | 0.60 | 5.00 |
| 2*0.75 | 42/0.15 | 0.50 | 2.15 | 0.60 | 5.40 | |
| 3*0.50 | 28/0.15 | 0.50 | 1.95 | 0.60 | 5.20 | |
| 3*0.75 | 42/0.15 | 0.50 | 2.15 | 0.60 | 5.80 | |

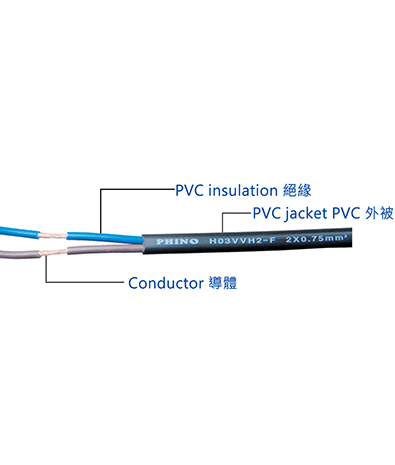

| Product Description ￭ Bare stranded copper conductor. ￭ PVC Insulation. ￭ PVC Jacket. ￭ Rated temperature: 70℃ ￭ Rated Voltage: 300V/300V ￭ Standard: K60227-5 Applications ￭ Power supply wire,suitable for indoor small electrical instruments. | ||||||
