Taiwan PVC Insulated Sheathed Double Core, Round Wire & Cable VCTF/HVCTF
Color
Black or customized products can be offered upon requestsMaterial
PVCMin. Order Q’ty
1000MProduction capacity
100000M/MonthCertificate
Specifications
| Type | Conductor | Insulation | Jacket | |||
| Area | construction | Thickness | OD | Thickness | OD | |
| mm2 | (NO./mm) | mm | mm | mm | mm | |
| VCTF HVCTF | 2*0.75 | 30/0.18 | 0.6 | 2.4 | 1.00 | 6.60 |
| 2*1.25 | 50/0.18 | 0.6 | 2.7 | 1.00 | 7.40 | |
| 2*2.00 | 37/0.26 | 0.6 | 3.2 | 1.00 | 8.00 | |
| 3*0.75 | 30/0.18 | 0.6 | 2.4 | 1.00 | 7.00 | |
| 3*1.25 | 50/0.18 | 0.6 | 2.7 | 1.00 | 7.80 | |
| 3*2.00 | 37/0.26 | 0.6 | 3.2 | 1.00 | 8.50 | |

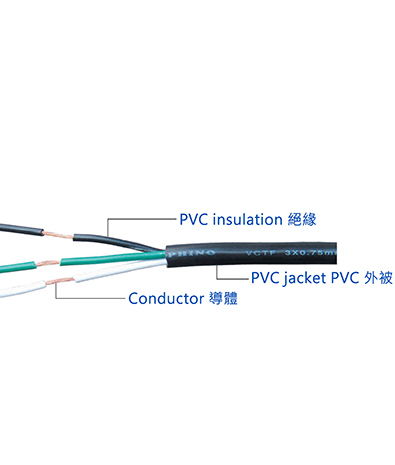

| Product Description ￭ Bare stranded copper conductor. ￭ PVC Insulation. ￭ PVC Jacketed. ￭ Rated temprature: 60℃ or 75℃ ￭ Rated Voltage: 300V ￭ Standard: CNS 3199 Applications ￭suitable for indoor small electrical instruments. | ||||||
