China RVV 300/500V Series Wire & Cable RVV 300/500V
Color
Black or customized products can be offered upon requestsMaterial
PVCMin. Order Q’ty
1000MProduction capacity
100000M/MonthCertificate
Specifications
| 型號 | 導體 | 絕緣 | 護套 | |||
| 截面積 | 構成 | 厚度 | 芯徑 | 厚度 | 外徑 | |
| mm2 | (NO./mm) | mm | mm | mm | mm | |
| RVV 300/500 | 2*0.75 | 42/0.15 | 0.6 | 2.35 | 0.8 | 6.20 |
| 2*1.00 | 32/0.20 | 0.6 | 2.50 | 0.8 | 6.60 | |
| 2*1.50 | 30/0.254 | 0.7 | 3.00 | 0.9 | 7.60 | |
| 3*0.75 | 42/0.15 | 0.6 | 2.35 | 0.8 | 6.60 | |
| 3*1.00 | 32/0.20 | 0.6 | 2.50 | 0.8 | 7.00 | |
| 3*1.50 | 30/0.254 | 0.7 | 3.00 | 0.9 | 8.20 | |
| RVV(Flat) 300/500VV | 2*0.75 | 42/0.15 | 0.6 | 2.35 | 0.8 | 4.0*6.4 |
| 2*1.00 | 32/0.20 | 0.6 | 2.50 | 0.8 | 4.3*6.6 | |

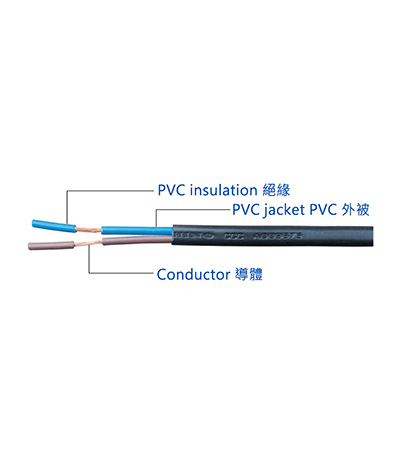

| Product Description ￭ Bare stranded copper conductor. ￭ PVC Insulation. ￭ PVC jacket. ￭ Rated temprature: 70℃ ￭ Rated Voltage: 300/500V ￭ Standard: GB/T 5023.5 Applications ￭ Used in general power supply cord. | ||||||
