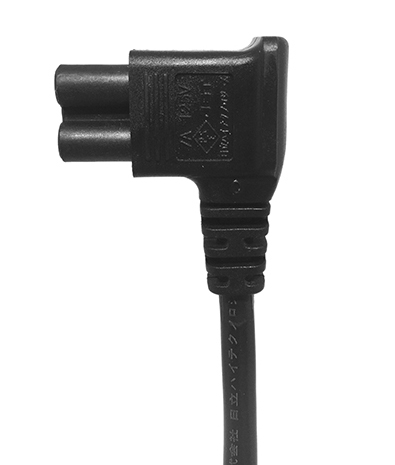

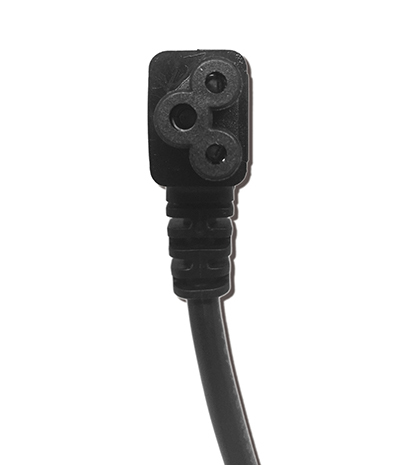

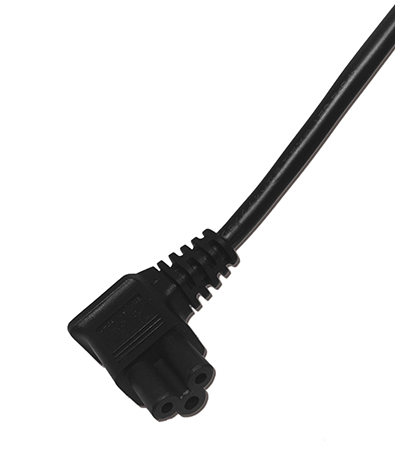

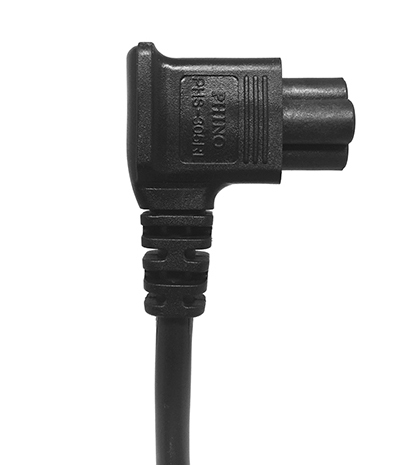

Holland IEC 60320 C5 3-Pin Right Angle Type AC Connector, 2.5A 250V

Connector p/No

PHS-305RL

Voltage

250V

AMP

2.5A

Color

Black or customized products can be offered upon requests

Material

PVC

Min. Order Q’ty

1000PCS

Production capacity

500000PCS/Month

Certificate

Drawing

IEC-60320-C5 (S305RL)

Specifications

Available with Cords	H03VV-F 3G 0.75mm²
Available with Cords	H05VV-F 3G 0.75~1.0mm²
Standard	IEC 60320 C5
RoHS Compliance	Yes
REACH Compliance	Yes
