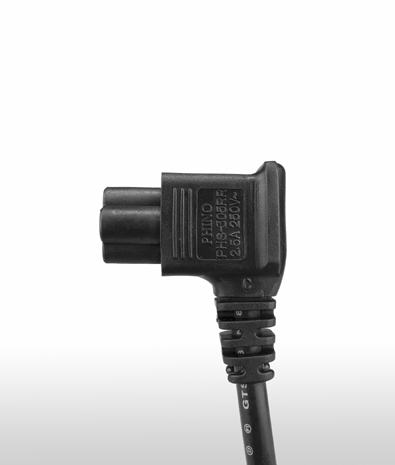

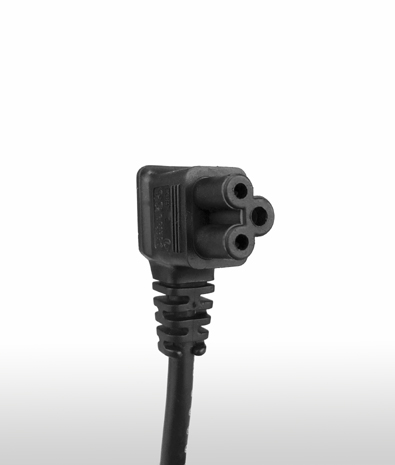

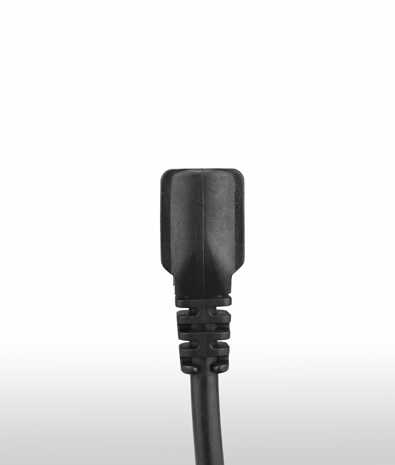

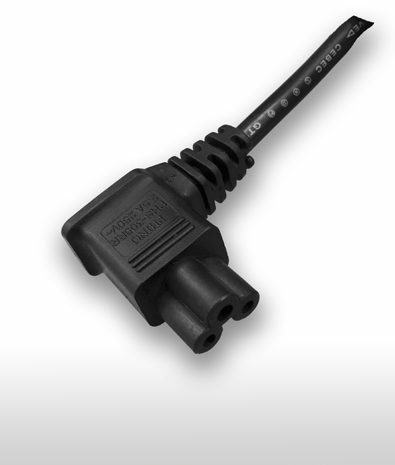

UK BS 60320 C5 3-Pin Left Angle type AC Connector, 2.5A 250V

Connector p/No

PHS-305RR

Voltage

250V

AMP

2.5A

Color

Black or customized products can be offered upon requests

Material

PVC

Min. Order Q’ty

1000PCS

Production capacity

500000PCS/Month

Certificate

Drawing

IEC-60320-C5 (S305RR)

Specifications

Wire Type	H03VV-F 3G0.75mm²
Wire Type	H05VV-F 3G0.75~1.0mm²
Referred Standard	BS 60320 C5
RoHS Compliance	Yes
REACH Compliance	Yes
