美國 UL498 C13 AC電源線連接器,3芯右彎式 15A 125V
美國 UL498 C13 AC電源線連接器,3芯右彎式 15A 125V
美國 UL498 C13 AC電源線連接器,3芯右彎式 15A 125V
美國 UL498 C13 AC電源線連接器,3芯右彎式 15A 125V

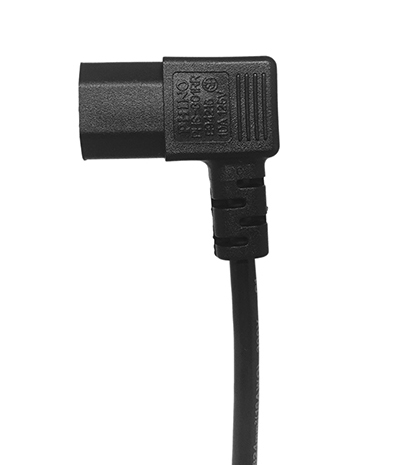

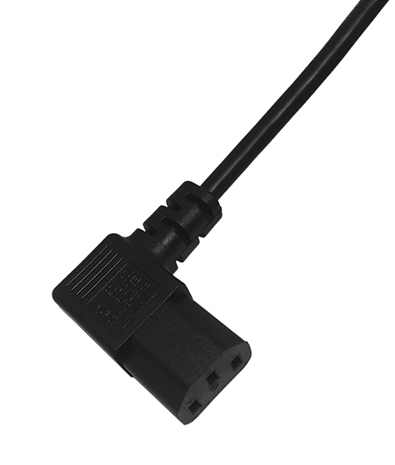

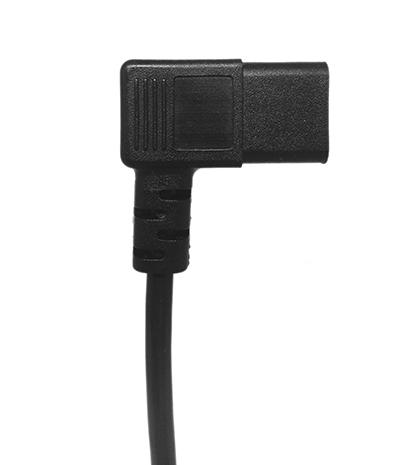

USA UL498 C13 3-Pin Left Angle Type AC Connector, 15A 125V

Connector p/No
PHS-301RR
Voltage
125V
AMP
15A
Color
Black or customized products can be offered upon requests
Material
PVC
Min. Order Q’ty
1000PCS
Production capacity
500000PCS/Month
Certificate
*
Inquiry Cart
Drawing
IEC-60320-C13 (S301RR)
Specifications

Wire TypeSVT               AWG 18/3C
SJT                AWG 18/3C 16/3C 14/3C
SPT-1            AWG 18/3C
SPT-2            AWG 18/3C 16/3C
SJTO             AWG 18/3C 17/3C 16/3C 15/3C 14/3C
SJTW            AWG 18/3C 17/3C 16/3C 15/3C 14/3C
Referred StandardUL498 C13
RoHS     ComplianceYes
REACH  Compliance Yes
