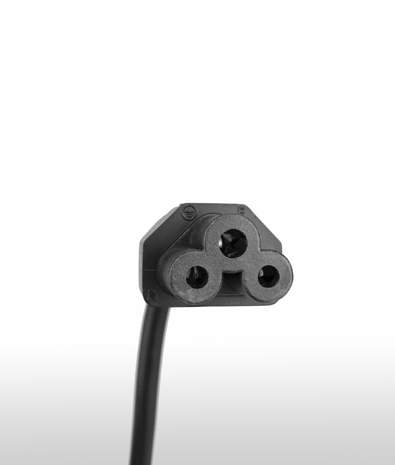

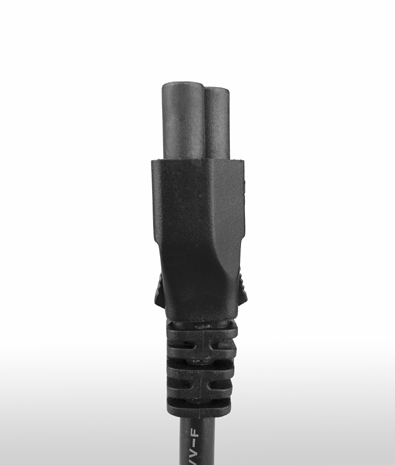

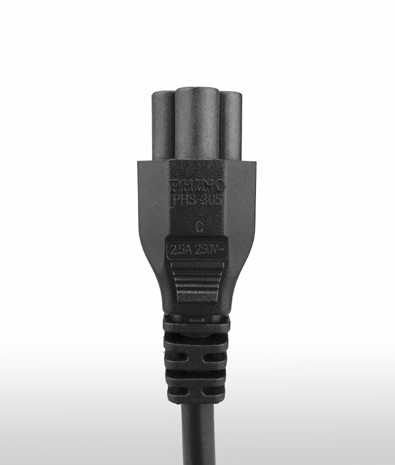

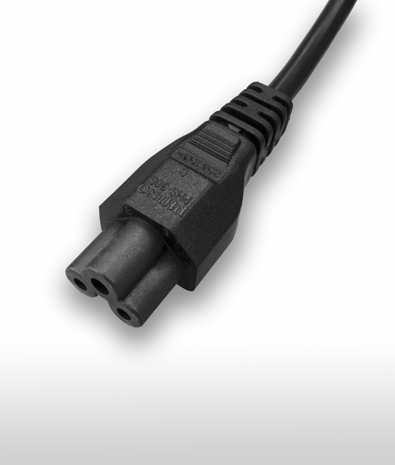

China GB17465 C5 3-Pin Straight AC Connector 2.5A 250V

Connector p/No

PHS-305

Voltage

250V

AMP

2.5A

Color

Black or customized products can be offered upon requests

Material

PVC

Min. Order Q’ty

1000PCS

Production capacity

500000PCS/Month

Certificate

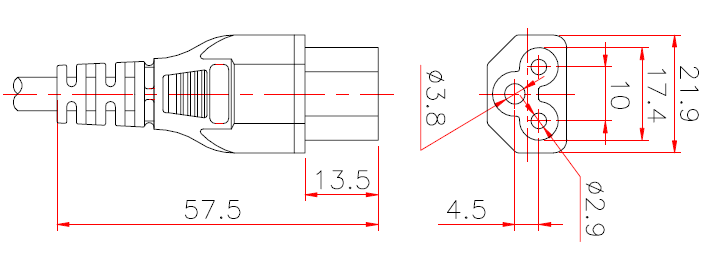

Drawing

GB-17465-C5 (S305)

Specifications

Wire Type	RVV 300/300V 3G 0.75mm²
Referred Standard	GB17465 C5
RoHS Compliance	Yes
REACH Compliance	Yes
