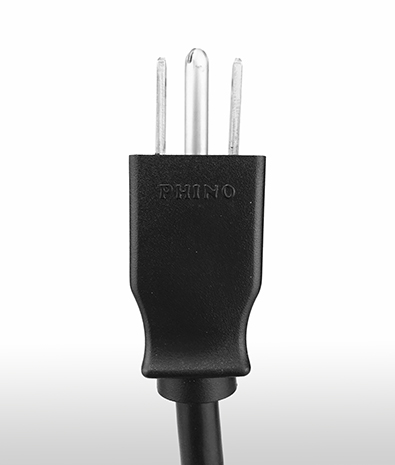

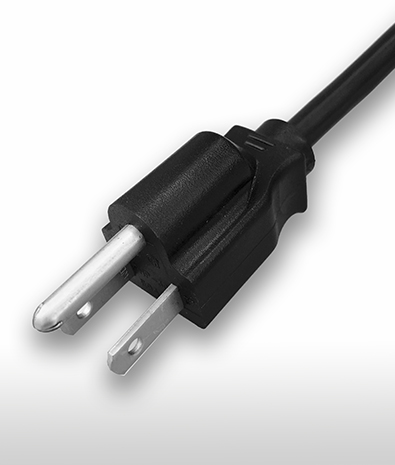

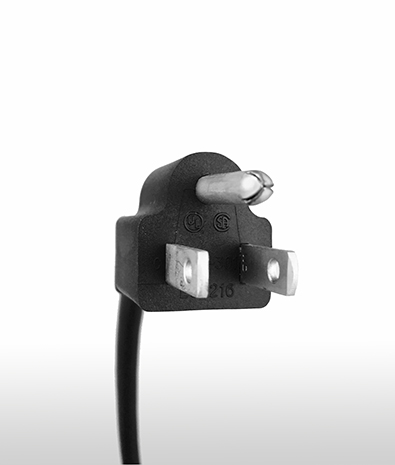

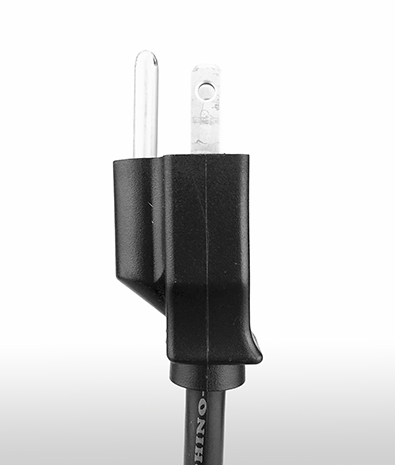

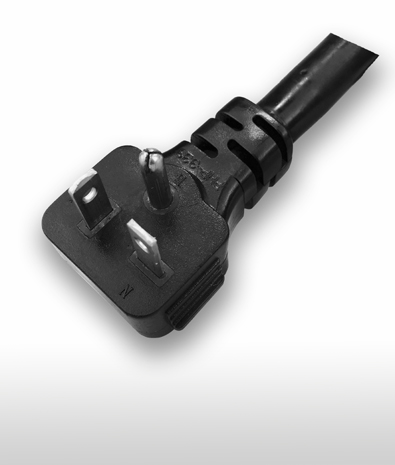

Taiwan 3-Pin Wire Grounded, Angle Type AC Plug, 15A 125V

Plug P/No

PHP-301

Voltage

125V

AMP

15A

Color

Black or customized products can be offered upon requests

Material

PVC

Min. Order Q’ty

1000PCS

Production capacity

500000PCS/Month

Certificate

Drawing

NEMA-5-15P (P301)

Specifications

Wire Type	VCTF 3G x 0.75~2.0mm²
	HVCTF 3G x 0.75mm²
	PNCTFK 2G x 0.75~2.0mm²
Referred Standard	CNS 690 , CNS 10917
RoHS Compliance	Yes
REACH Compliance	Yes
