USA NEMA 5-20P 3-Pin Wire Grounding, Angle Type AC Plug, 20A 125V

Plug P/No

PHP-332

Voltage

125V

AMP

20A

Color

Black or customized products can be offered upon requests

Material

PVC

Min. Order Q’ty

1000PCS

Production capacity

500000PCS/Month

Certificate

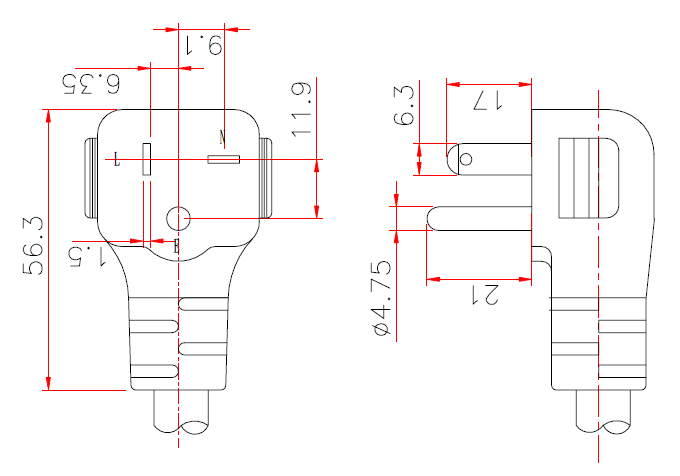

Drawing

NEMA-6-15P (P332)

Specifications

Available with Cords	SJT AWG 14/3C 12/3C
	SJT(W) AWG 14/3C 12/3C
	SJT(O) AWG 14/3C 12/3C
	SJTO(W) AWG 14/3C 12/3C
	SJTO(O) AWG 14/3C 12/3C
	SJTOO(W) AWG 14/3C 12/3C
Standard	UL 817 , NEMA 5-20P
RoHS Compliance	Yes
REACH Compliance	Yes
