USA NEMA 1-15P 2-Pin Non-Grounded, Straight Locking AC Plug, 15A 125V

Plug P/No
PHP-207G
Voltage
125V
AMP
15A
Color
Black or customized products can be offered upon requests
Material
PVC
Min. Order Q’ty
1000PCS
Production capacity
500000PCS/Month
Certificate
*
Inquiry Cart

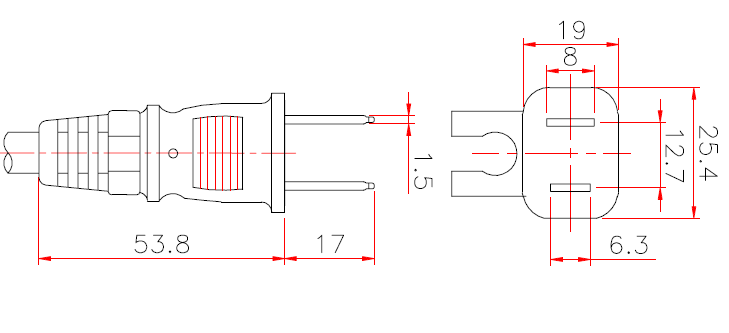

Drawing
NEMA-1-15P (P207G)
Specifications
Wire TypeSVT     AWG 18/2C 17/2C 16/2C
SJ         AWG 16/2C 14/2C
SJT       AWG 18/2C 14/3C  16/2C
SJTW    AWG 18/2C 16/2C 14/2C
SJW      AWG  16/2C 14/2C
SJ0W    AWG  16/2C 14/2C
SJOOW AWG 16/2C 14/2C
SJTOW AWG 18/2C 16/2C 14/2C
SJTOOW AWG 18/2C 16/2C 14/2C
Referred StandardUL 817 , NEMA 1-15P
RoHS     ComplianceYes
REACH  Compliance Yes
