Products
Plugs & Wiring parts

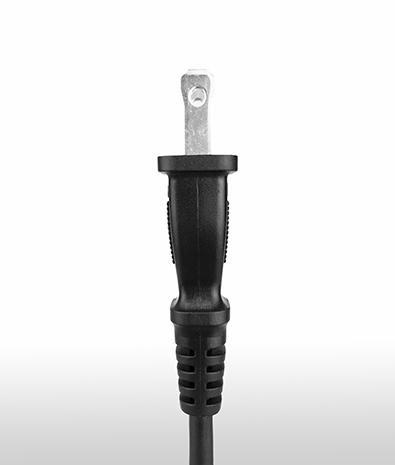

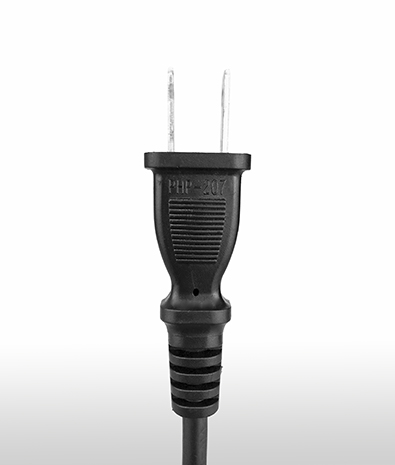

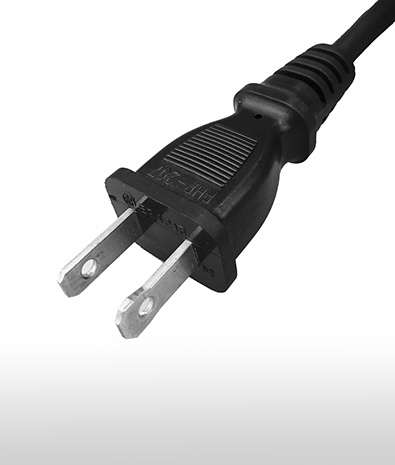

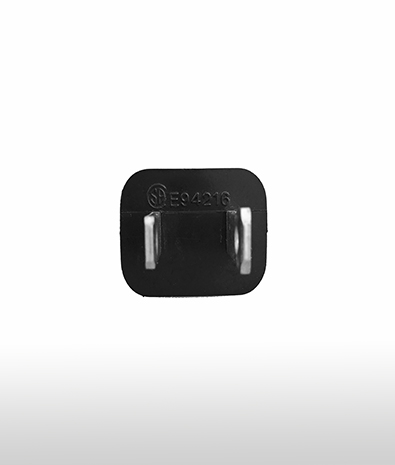

USA NEMA 1-15P 2-Pin Non-Grounded, Straight AC Plug, 15A 125V
Plug P/No
PHP-207Voltage
125VAMP
15AColor
Black or customized products can be offered upon requestsMaterial
PVCMin. Order Q’ty
1000PCSProduction capacity
500000PCS/MonthCertificate

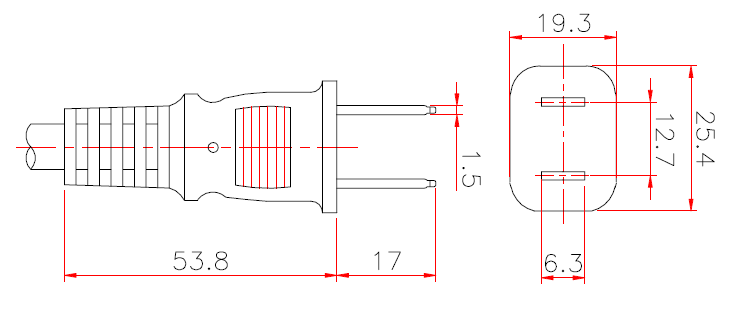

Drawing
.png)
Specifications
| Wire Type | SVT AWG 18/2C 17/2C 16/2C |
| SJ AWG 16/2C 14/2C | |
| SJT AWG 18/2C 14/3C 16/2C | |
| SJTW AWG 18/2C 16/2C 14/2C | |
| SJW AWG 16/2C 14/2C | |
| SJ0W AWG 16/2C 14/2C | |
| SJOOW AWG 16/2C 14/2C | |
| SJTOW AWG 18/2C 16/2C 14/2C | |
| SJTOOW AWG 18/2C 16/2C 14/2C | |
| Referred Standard | UL 817 , NEMA 1-15P |
| RoHS Compliance | Yes |
| REACH Compliance | Yes |
