HomeProductsPlugs & Wiring partsAC PlugJapanJapan 3-Pin Wire Grounding, Angle Type AC Plug, 20A 250V

Products

類別

Plugs & Wiring parts

日本 彎式 AC插頭3PIN 接地, 20A 250V
日本 彎式 AC插頭3PIN 接地, 20A 250V
日本 彎式 AC插頭3PIN 接地, 20A 250V
日本 彎式 AC插頭3PIN 接地, 20A 250V

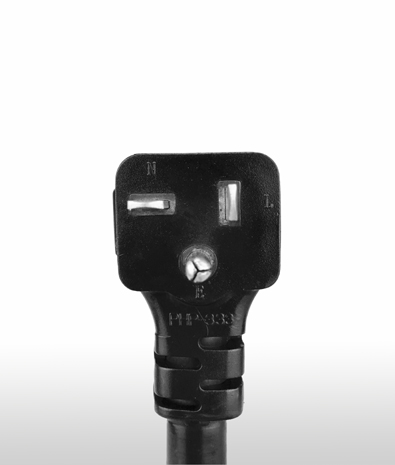

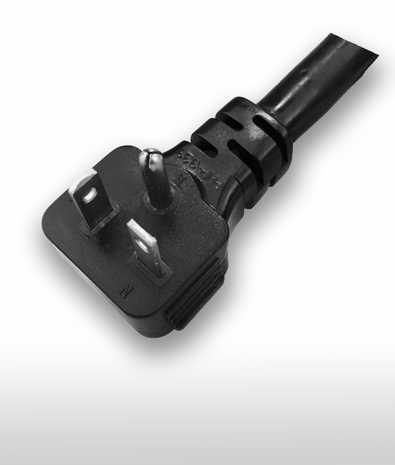

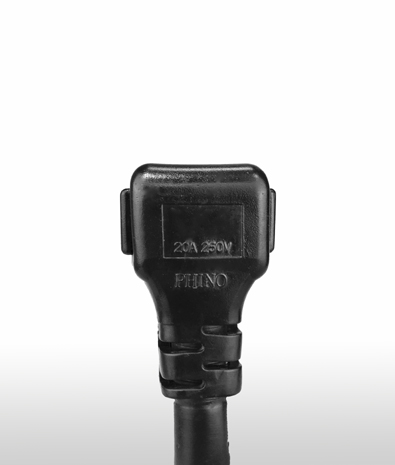

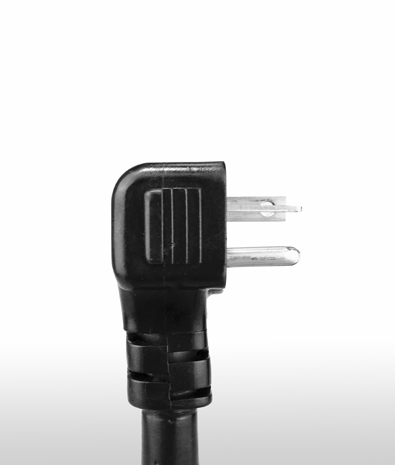

Japan 3-Pin Wire Grounding, Angle Type AC Plug, 20A 250V

Plug P/No
PHP-333
Voltage
250V
AMP
20A
Color
Black or customized products can be offered upon requests
Material
PVC
Min. Order Q’ty
1000PCS
Production capacity
500000PCS/Month
Certificate
*
Inquiry Cart

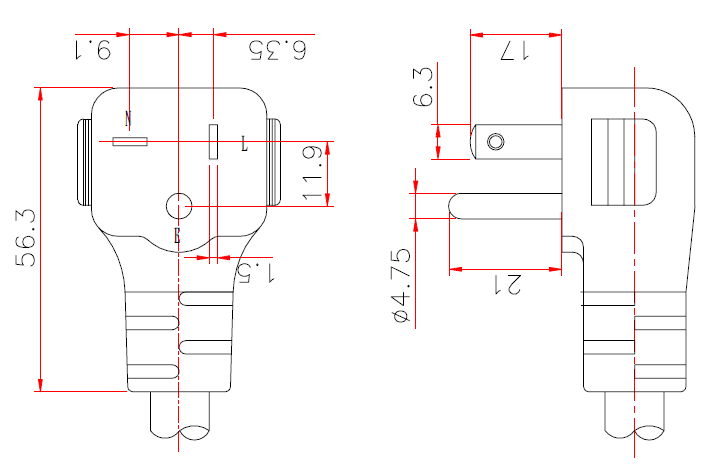

Drawing
JIS-C8303-6-20P (P333)
Specifications
Available with Cords(H)VCTF    3G 2.0~3.5mm2
VCT      3G 2.0~3.5mm2
StandardJIS C8303
RoHS   ComplianceYes
REACH ComplianceYes
