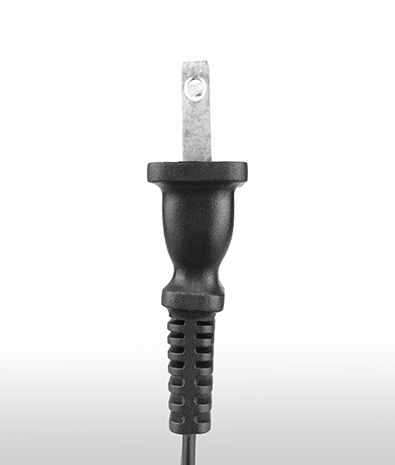

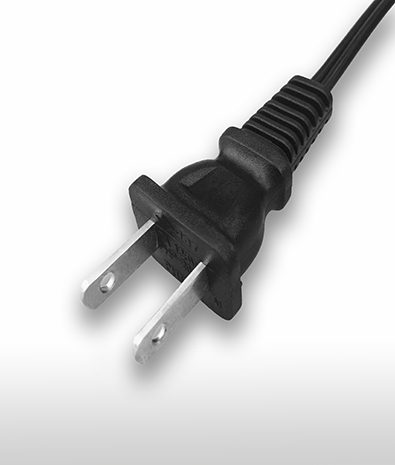

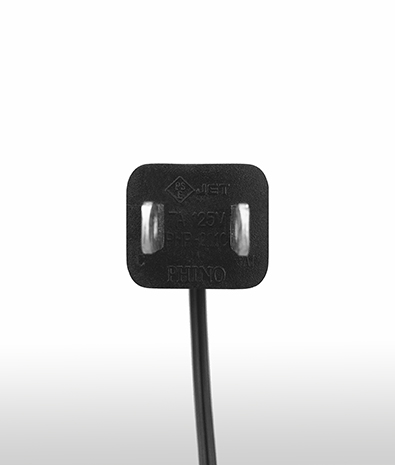

Japan 2-Pin Non-Grounded, Straight AC Plug, 15A 125V

Plug P/No

PHP-201C

Voltage

125V

AMP

15A

Color

Black or customized products can be offered upon requests

Material

PVC

Min. Order Q’ty

1000PCS

Production capacity

500000PCS/Month

Certificate

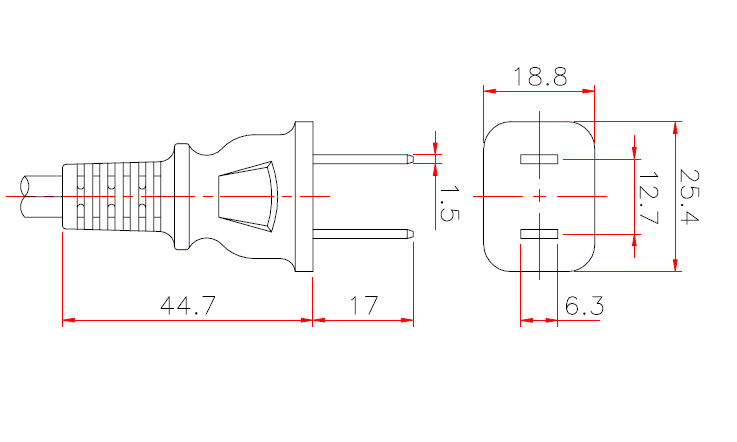

Drawing

JIS-C8303 (P201C)

Specifications

Available with Cords	(H)VFF 2X0.75~2.0mm²
	VCTK 2X0.75~2.0mm²
	VCTFK 2X0.75~2.0mm²
	HVCTFK 2X0.75~2.0mm²
	HHVCTFK 2X0.75~2.0mm²
	HHFF 2X0.75~2.0mm²
Standard	JIS C8303
RoHS Compliance	Yes
REACH Compliance	Yes
