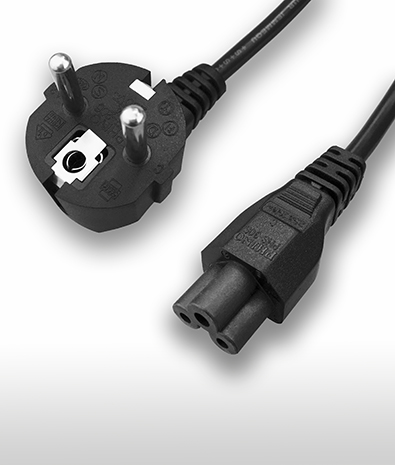

South Korea KS C8305 Down Angle Plug To IEC 60320 C5 Connect_Products | AC power cord, plugs, sockets and wire harness manufacturer Phino Electric

Products

Voltage

250V

AMP

2.5A

Color

Black or customized products can be offered upon requests

Material

PVC

Min. Order Q’ty

1000PCS

Production capacity

500000PCS/Month

Plug P/No

KS C8305 / PHP-206

Plug AMP/Voltage

16A 250V

Connector p/No

IEC 60320 C5 / PHS-305

Connector AMP/Voltage

2.5A 250V

Certificate

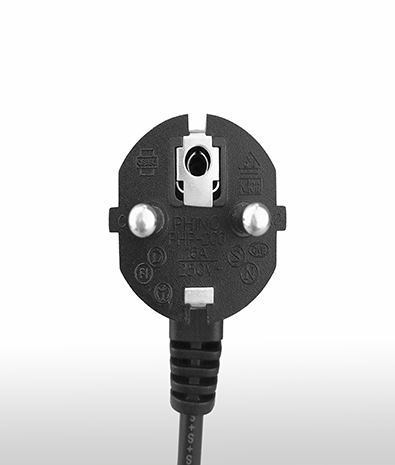

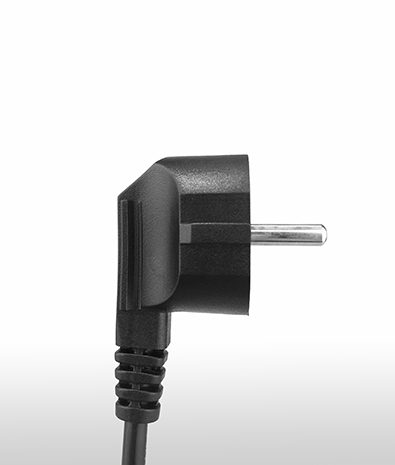

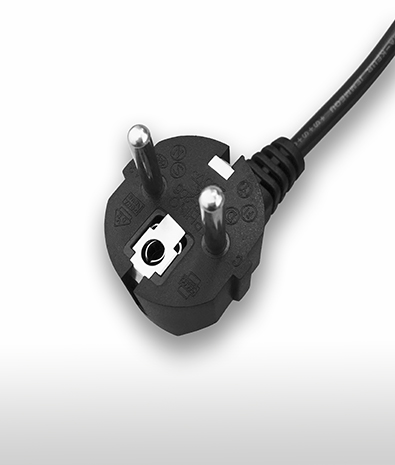

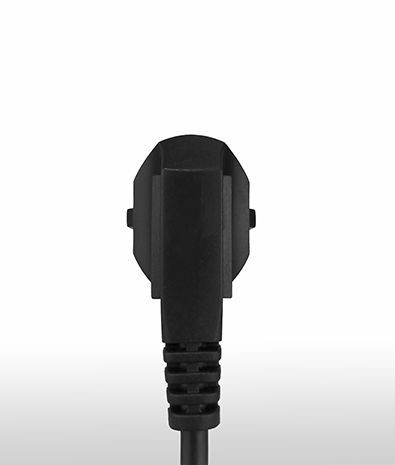

The South Korea KS C8305 Down Angle plug (Male) is a 2 pins grounded plug rated up to 250V and 16A. The plug has two round pins (line and neutral) each 4.8 mm diameter, 19 mm long and spaced 19 mm apart. The plug also has two flat areas (top and bottom sides) and a female contact for the ground. The down angled plug is designed for tight installations in which a straight connector.

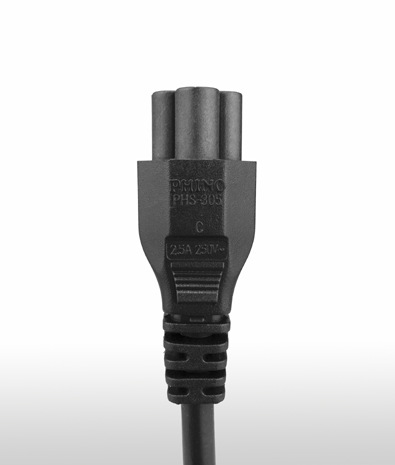

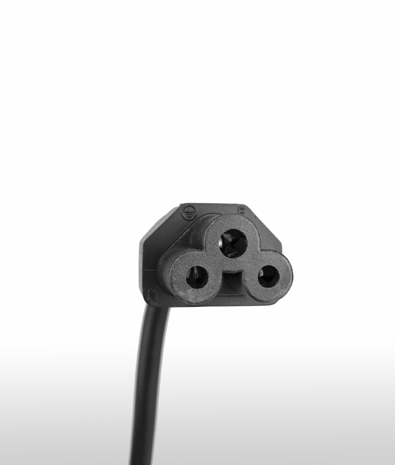

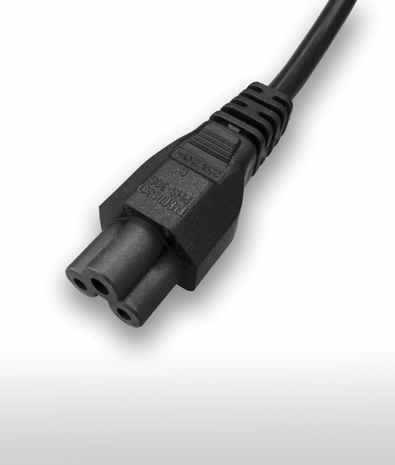

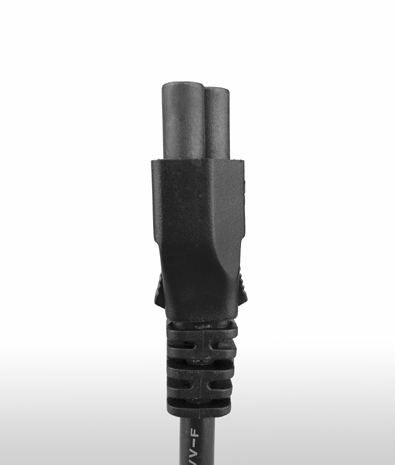

The IEC 60320 C5 (Female) is a 3 pins grounded connector rated up to 250V and 2.5A. The C5 mates with a C6 inlet and is commonly used for laptop power supplies, projectors, and televisions. Being slightly smaller in size than the C13, the C5 can be a good choice for smaller appliances. This connector is sometimes referred to as a (Mickey Mouse) connector due to the shape of the connector.
