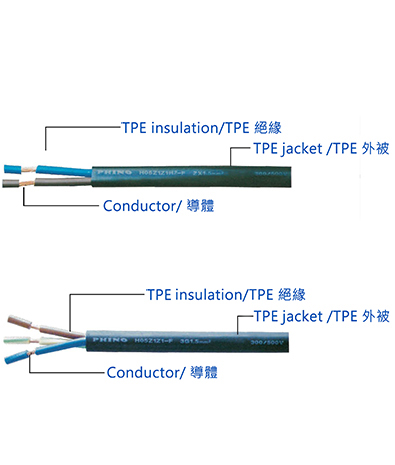

Germany H05 Series Halogen Free Wire & Cable H05Z1Z1-F/H05Z1Z1H2-F
Color
Black or customized products can be offered upon requestsMaterial
TPEMin. Order Q’ty
1000MProduction capacity
100000M/MonthCertificate
Specifications
| Type | Conductor | Insulation | Jacket | |||
| Area | Construction | Thickness | OD | Thickness | OD | |
| mm2 | (NO./mm) | mm | mm | mm | mm | |
| H05ZIZH2-F | 2*0.75 | 28/0.15 | 0.6 | 2.35 | 0.80 | 4.0*6.4 |
| H05ZIZ1-F | 2*0.75 | 42/0.15 | 0.6 | 2.35 | 0.80 | 6.20 |
| 2*1.00 | 32/0.20 | 0.6 | 2.50 | 0.80 | 6.60 | |
| 2*1.50 | 30/0.254 | 0.6 | 3.00 | 0.80 | 7.60 | |
| 3*0.75 | 42/0.15 | 0.6 | 2.35 | 0.80 | 6.60 | |
| 3*1.00 | 32/0.20 | 0.6 | 2.50 | 0.80 | 7.00 | |
| 3*1.50 | 30/0.254 | 0.7 | 3.10 | 0.90 | 8.20 | |
| Product Description ￭ Bare stranded copper conductor. ￭ TPE Insulation. ￭ TPE Jacket. ￭ Rated temperature:70℃ ￭ Rated Voltage: 300/500V ￭ Standard: EN50525 Applications ￭ Power supply wire,suitable for indoor small electical instruments. | ||||||
