USA Rubber Wire & Cable SJ
Color
Black or customized products can be offered upon requestsMaterial
CPE & CSMMin. Order Q’ty
1000MProduction capacity
100000PCS/MonthCertificate
Specifications
| Type | Conductor | Insulation | Jacket | ||||
| NO | AWG | Area | construction | Thickness | Thickness | OD | |
| mm2 | (NO./mm) | mm | mm | mm | |||
| SJ | 2 | 18 | 0.824 | 41/0.158 | 0.76 | 0.76 | 7.30 |
| 2 | 16 | 1.310 | 65/0.158 | 0.76 | 0.76 | 7.90 | |
| 2 | 14 | 2.080 | 41/0.250 | 0.76 | 0.76 | 8.70 | |
| 3 | 18 | 0.824 | 41/0.158 | 0.76 | 0.76 | 7.80 | |
| 3 | 16 | 1.310 | 65/0.158 | 0.76 | 0.76 | 8.50 | |
| 3 | 14 | 2.080 | 41/0.250 | 0.76 | 0.76 | 9.40 | |
| 4 | 18 | 0.824 | 41/0.158 | 0.76 | 0.76 | 8.50 | |
| 4 | 16 | 1.310 | 65/0.158 | 0.76 | 0.76 | 9.10 | |
| 4 | 14 | 2.080 | 41/0.250 | 0.76 | 0.76 | 10.30 | |
| 5 | 18 | 0.824 | 41/0.158 | 0.76 | 0.76 | 9.80 | |
| 5 | 16 | 1.310 | 65/0.158 | 0.76 | 0.76 | 9.00 | |
| 5 | 14 | 2.080 | 41/0.250 | 0.76 | 0.76 | 11.00 | |
| 4 | 12 | 3.310 | 65/0.250 | 0.76 | 1.14 | 12.10 | |
| 5 | 12 | 3.310 | 65/0.250 | 0.76 | 1.14 | 13.00 | |
| 5 | 10 | 5.260 | 105/0.250 | 1.14 | 1.52 | 17.50 | |

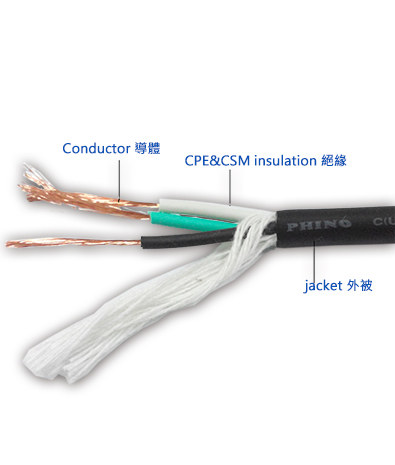

| Product Description ￭ Bare stranded copper conductor. ￭ CPE&CSM insulation. ￭ CPE&CSM jacket. ￭ Rated temperature: -50℃ or 105℃ ￭ Rated Voltage: 300V ￭ Passed FT1&FT2 horizontal flame test. ￭ Standard: UL62 Application ￭ Used in heavy-duty power supply soft wire:portable cordage of tools,washing-machine，sander etc. | |||||||
