Products
Plugs & Wiring parts

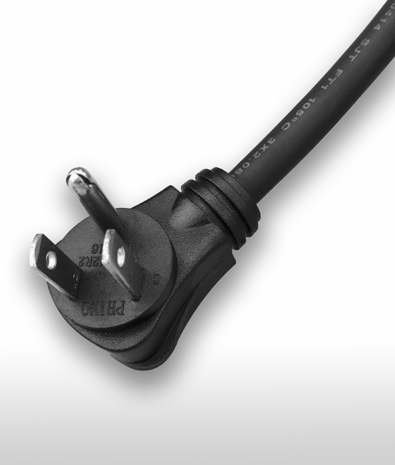

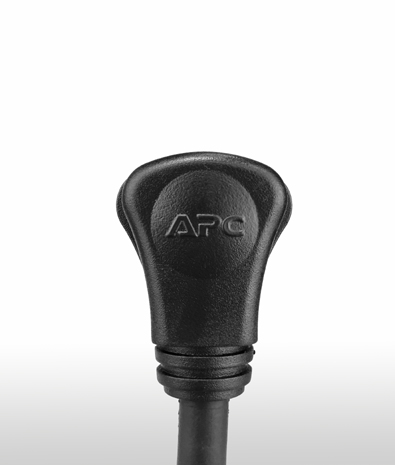

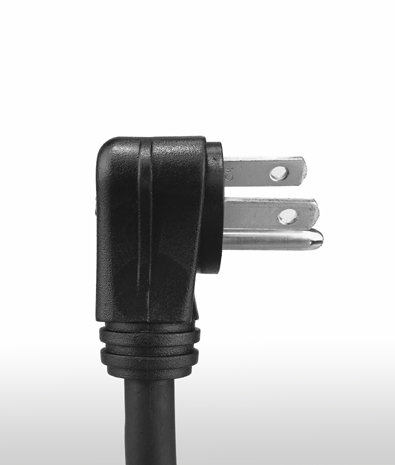

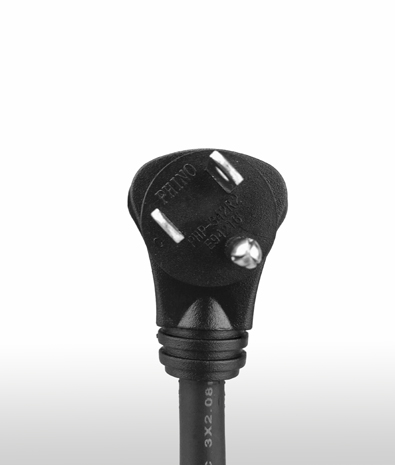

USA NEMA 5-15P 3-Pin Non-Grounded, Angle Type AC Plug, 15A 125V
Connector p/No
PHP-342R2Voltage
125VAMP
15AColor
Black or customized products can be offered upon requestsMaterial
PVCMin. Order Q’ty
1000PCSProduction capacity
500000PCS/MonthCertificate

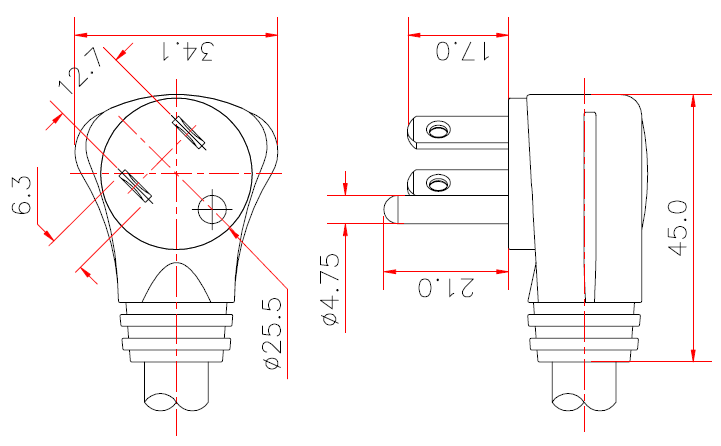

Drawing
.png)
Specifications
| Available with Cords | SVT AWG 18/3C 16/3C |
| SJT AWG 18/3C 16/3C 14/3C 12/3C | |
| SJT(W) AWG 18/3C 16/3C 14/3C 12/3C | |
| SJT(O) AWG 18/3C 16/3C 14/3C 12/3C | |
| SJTO(W) AWG 18/3C 16/3C 14/3C 12/3C | |
| SJTO(O) AWG 18/3C 16/3C 14/3C 12/3C | |
| SJTOO(W) AWG 18/3C 16/3C 14/3C 12/3C | |
| SPT-1 AWG 18/3C | |
| SPT-2 AWG 18/3C 16/3C | |
| SPT-3 AWG 18/3C 16/3C | |
| HPN AWG 18/3C 16/3C | |
| Standard | UL 817 , NEMA 5-15P |
| RoHS Compliance | Yes |
| REACH Compliance | Yes |
